  • THE CANTER 3,5 T. <br />
READY FOR THE CITY.

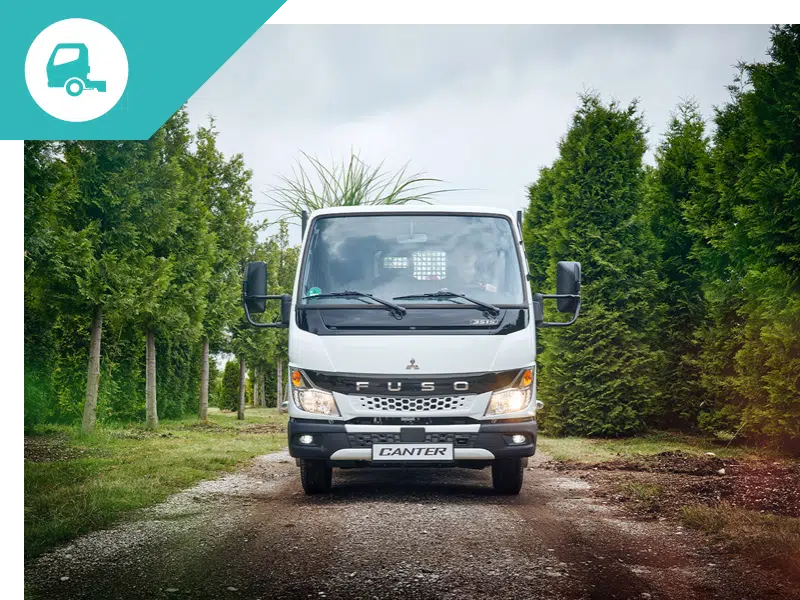

    THE CANTER 3,5 T.
    READY FOR THE CITY.

    Features, technical data, equipment details

logo
C-PROFILE LADDER FRAME.
Made of 4mm thick steel,
particularly load-beering
10,2 M TURNING CIRCLE.
Easy to maoeuvre,
unbeaten in its class
3 CAB VARIANTS.
Standard, comfort, comfort-double cab
and up to 6 seats

TRUE SIZE. THE CANTER 3,5 T.

3S13 / 3C13 / 3S15 / 3C15 (D)

The FUSO Canter 3.5 t is ideally suited for use in the city and urban environments. Its compact dimensions and the design as a front steer without a nose make it extremely agile, manoeuvrable and shunting-friendly.

With the smallest turning circle in the 3.5-tonne class – 10.2 m with a wheelbase of 2,500 mm – and due to the excellent all-round visibility, Canter drivers can get further wherever they would have to shift into reverse gear with another van. All this, additionally, with increased driving comfort thanks to the standard independent wheel suspension on the front axle.

Speaking of getting further: With up to 5.7 m – at a wheelbase of 3,850 mm – the Canter 3.5 t is also the leader in its segment in terms of maximum body length.

Its characteristic steel ladder frame – in frame widths of 700 mm or 750 mm, depending on the cab variant selected – gives the Canter chassis remarkable robustness and load-bearing capacity. This is complemented by above-average maximum axle loads – 1,950 kg on the front axle and 2,500 kg on the rear axle – and up to 3.5 tonnes permissible towing capacity. The Canter 3.5 t is a real light truck, everything else is just a van.

TECHNICAL DATA.
THE CANTER 3,5 T IN NUMBERS.

3S13 3S15
Cabin Standard (1,7 m) Standard (1,7 m)
Cabin Type / Seats Single / 3 Single / 3
Wheelbase (mm) 2.500 2.800 3.400 2.500 2.800
Chassis Payload (kg) 1.565 1.555 1.530 1.565 1.555
Maximum Body Length (mm) 3.500 3.995 4.985 3.500 3.995
Axle Loads (front / rear) 1.950/2.500 1.950/2.500
Transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission
Maximum power/torque 96 Kw (130 PS) / 350 Nm 110 Kw (150 PS) / 400 Nm
Minimum turning circle wall to wall (m) 10,2 11,2 13 10,2 11,2
3C13 3C15 (D)
Cabin Comfort (2,0m) Comfort (2,0m)
Cabin Type / Seats Single / 3 Single / 3 Doppel / 6
Wheelbase (mm) 2.500 2.800 3.400 3.850 2.500 2.800 3.400 3.850 3.400
Chassis Payload (kg) 1.460 1.455 1.430 1.415 1.460 1.450 1.425 1.410 1.205
Maximum Body Length (mm) 3.500 3.995 4.985 5.725 3.500 3.995 4.985 5.725 3.985
Axle Loads (front / rear) 1.950/2.500 1.950/2.500
Transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission
Maximum power/torque 96 Kw (130 PS) / 350 Nm 110 Kw (150 PS) / 400 Nm
Minimum turning circle wall to wall (m) 10 11 12,6 14 10 11 12,6 14 12,6
6S15
Cabin Standard (1,7 m)
Cabin Type / Seats Single / 3
Wheelbase (mm) 2.500 2.800 3.400
Chassis Payload (kg) 3.785 3.770 3.740
Maximum Body Length (mm) 3.500 3.995 4.985
Axle Loads (front / rear) 2.300/4.360
Transmission 5-speed manual transmission
Maximum power/torque 110 Kw (150 PS) / 400 Nm
Minimum turning circle wall to wall (m) 11,4 12,4 14,6
6C18 (D)
Cabin Comfort (2,0 m)
Cabin Type / Seats Single / 3 Double / 7
Wheelbase (mm) 3.415 3.865 3.415 3.865
Chassis Payload (kg) 3.685 3.665 3.465 3.445
Maximum Body Length (mm) 5.005 5.750 4.005 4.750
Axle Loads (front / rear) 2.800/5.125 2.800/5.070 2.800/5.125 2.800/5.070
Transmission 5-speed manual transmission
Maximum power / torque 129 Kw (175 PS) / 430 Nm
Minimum turning circle wall to wall (m) 14,9 16,5 14,9 16,5
Slope angle (front/rear) 35°/25°
Ground clearance under the axles front/rear (mm) 210/185
7C15 (D) 7C18 (D)
Cabin Comfort (2,0 m) Comfort (2,0 m)
Cabin Type / Seats Single / 3 Double / 7 Single / 3 Doppel / 7
Wheelbase (mm) 2.800 3.400 3.850 4.300 3.850* 2.800 3.400 3.850 4.300 4.750 3.850 4.750**
Chassis Payload (kg) 4.970 4.940 4.920 4.875 4.705 4.970 4.940 4.920 4.875 4.855 4.705 4.620
Maximum Body Length (mm) 3.995 4.985 5.725 6.470 4.725 3.995 4.985 5.725 6.470 7.210 4.725 6.210
Axle Loads (front / rear) 3.100/5.800 3.100/5.740 3.100/5.680 3.100/5.740 3.100/5.800 3.100/5.740 3.100/5.680 3.100/5.640 3.100/5.740 3.100/5.640
Transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission
Maximum power/torque 110 Kw (150 PS) / 400 Nm 129 kW (175 PS) / 430 Nm
Minimum turning circle wall to wall (m) 11,8 13,8 15,2 16,6 15,2 11,8 13,8 15,2 16,6 18 15,2 18
*only available with manual transmission **only available with DUONIC
9C18
Cabin Comfort (2,0 m)
Cabin Type / Seats Single / 3
Wheelbase (mm) 3.400 3.850 4.300 4.750
Chassis Payload (kg) 5.985 5.950 5.935 5.895
Maximum Body Length (mm) 4.985 5.725 6.470 7.210
Axle Loads (front / rear) 3.100/5.800
Transmission DUONIC 6-speed dual-clutch transmission
Maximum power/torque 129 kW (175 PS) / 430 Nm
Minimum turning circle wall to wall (m) 13,8 15,2 16,6 18

INNER VALUES.
THE CANTER 3,5 T IN DETAIL.

CABS.
NARROW, WIDE AND DOUBLE.

With the Canter 3.5 t, three cab variants allow for a customised and individual configuration.

  • The narrow version of the standard single cab, with a width of 1,695 mm, combines particularly compact exterior dimensions with a relatively spacious interior and three fully-fledged seats
  • With a width of 1,995 mm each, the two other variants, Comfort Single Cab and Comfort Double Cab, offer three and up to six seats respectively.With a width of 1,995 mm each, the two other variants, Comfort Single Cab and Comfort Double Cab, offer three and up to six seats respectively.

ENGINES.
STRONG AND EFFICIENT.

Two economical 3-litre engines are available for the Canter 3.5 t in the performance levels 95 kW (130 hp) and 110 kW (150 hp).

  • Its turbocharger featuring variable turbine geometry ensures an optimal response and consistently high torque even at low engine speed.
  • They feature the latest common-rail technology and a start-stop function as standard.
  • A closed, automatically regenerating diesel particulate filter in combination with selective catalytic reduction (SCR) cleans the exhaust gases.
  • The engines meet the EURO VI standard (stage E).

TRANSMISSION.
MANUAL AND AUTOMATIC.

Along with a conventional 5-speed manual transmission, FUSO offers the DUONIC® 2.0 dual-clutch transmission for the Canter 3.5 t.

  • The automated 6-speed transmission provides a comfortable shifting sensation without tractive effort interruption and with minimal wear.
  • In addition, there is the practical parking function for safe parking, the consumption-reducing integrated Eco Mode and other intelligent solutions such as the crawl function for easier manoeuvring and the Hill Start Assist to ensure the truck moves off smoothly on upward gradients.

SAFETY.
PROTECT AND SUPPORT.

The Canter 3.5 t is equipped with various modern assistance and safety systems.

  • ESP, ABS and driver airbag are of course standard.
  • Other systems, such as LDWS (Lane Departure Warning System) and Sideguard Assist (Turning Assistant) are available as options.
  • In addition to the standard LED daytime running lights, there are optional front headlights in LED design.
  • In addition to the optional front passenger airbag, the seatbelt reminder enhances occupant safety.
  • A reinforced rear underride guard offers even better protection in the case of rear-end collisions.

FACTORY BODIES.
RAPIDLY AVAILABLE AND TESTED.

For the Canter 3.5 t, FUSO offers tipper and platform bodies in various designs directly from the factory.

  • The offer increases the prompt availability of a complete vehicle.
  • The factory bodies, developed and tested by FUSO, stand for maximum quality as a complete vehicle concept..
  • The 36-month warranty on chassis, drive train and components from the factory up to 100,000 km also includes the body.
  • Numerous optional extras, such as a toolbox, are available.

INTERIOR.
COMFORTABLE AND PRACTICAL.

The interior of the Canter 3.5 t combines practical functionality with a driver-oriented focus.

  • A continuously adjustable steering wheel for individual adjustment is standard.
  • A particularly comfortable ergonomic driver’s swing seat from Isringhausen is also available.
  • The well thought-out storage concept brings clarity and order and includes clever solutions such as the storage shelf on the back of the folding central seat.
  • Power windows add to the ease of use.

MORE.
IN SERIES AND OPTIONAL.

The portfolio of the Canter 3.5 t convinces with a number of other practice-oriented equipment features.

  • The standard Autolight function controls the driving lights depending on the lighting conditions.
  • The exhaust brake protects wearing parts such as pads and discs and relieves the brake system on long downhill journeys.
  • The optional 24 V interface and factory-available power take-offs round off the great body-friendliness.
  • An automatic air conditioning system or a manual air conditioning system are available as options.
  • The latter is also available for the double cab with separately controllable additional ventilation for the back seat.
